Product Details

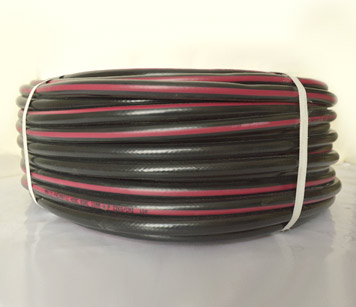

Air/Pneumatic Hose

Amatic

PVC BRAIDED HOSE PIPE offers far higher pressure capability , It is made from non-toxic Ingredients. Mirror Smooth interior permits outstanding flow characteristics conforming and abrasion resistance with flexibility. It Is light in weight so easy to handle. It does not crack when in use or stored for long time. PVC makes the surface smoother and allows better flow of fluid. Its clear transparency allows, air lock and blockage if any, to be quickly detected.

Make Enquiry
Technical Specification
Note :- View full details, scroll left to right
Operating Fluid Air/Water/Liquid
Max Operating Pressure 30-60 bar
Burst Pressure 150-200 bar
Operating Temperature -5 degree to 80 degree
Wall Thickness 3 mm-4mm
Material PVC compound
Reinforcement: High Quality Synthetic Braided yarn
Sizes and Working Pressures
Note :- View full details, scroll left to right
Size(mm) Working Pressure Standard Length (m)
ID OD
5 10 25 kg/cm2 100
6 12 25 kg/cm2 100
8 13 15 kg/cm2 100
8 14 20 kg/cm2 100
8 16 22 kg/cm2 100
10 16 25 kg/cm2 100
12 17 18 kg/cm2 100
12 19 15 kg/cm2 100
16 22 18 kg/cm2 100
19 25 13 kg/cm2 100
19 27 12 kg/cm2 100
25 31 15 kg/cm2 100
25 33 10 kg/cm2 100
Salient Features
  • Strong enough to without stand high pressure.
  • Light in weight than rubber hose so easy to handle.
  • Smooth inner surface permits better flow of fluid.
  • Does not kick or crack when in use or unused for longer time.
  • Excellent transparency allow to see, detect flow fluid.
  • Reinforced tube wall eliminates flows interruption caused by outside pressure.
  • No damages to the pipe from rodents
Application of Air/Pneumatic Hose
  • Agriculture
  • Air & Gas Lines
  • Beverage Transfer
  • Chemical Processing & Transfer
  • Laboratory & Research
  • General Water Suction & Discharge
  • Pharmaceutical Manufacture
  • Pools & Spas Refrigeration & Cooling systems
